ORTPAK automatic PET strapping band production line boasts intelligent control throughout the process, strong production capacity, outstanding precision, and environmental protection and energy saving. It provides a one-stop solution for large-scale production of strapping bands.

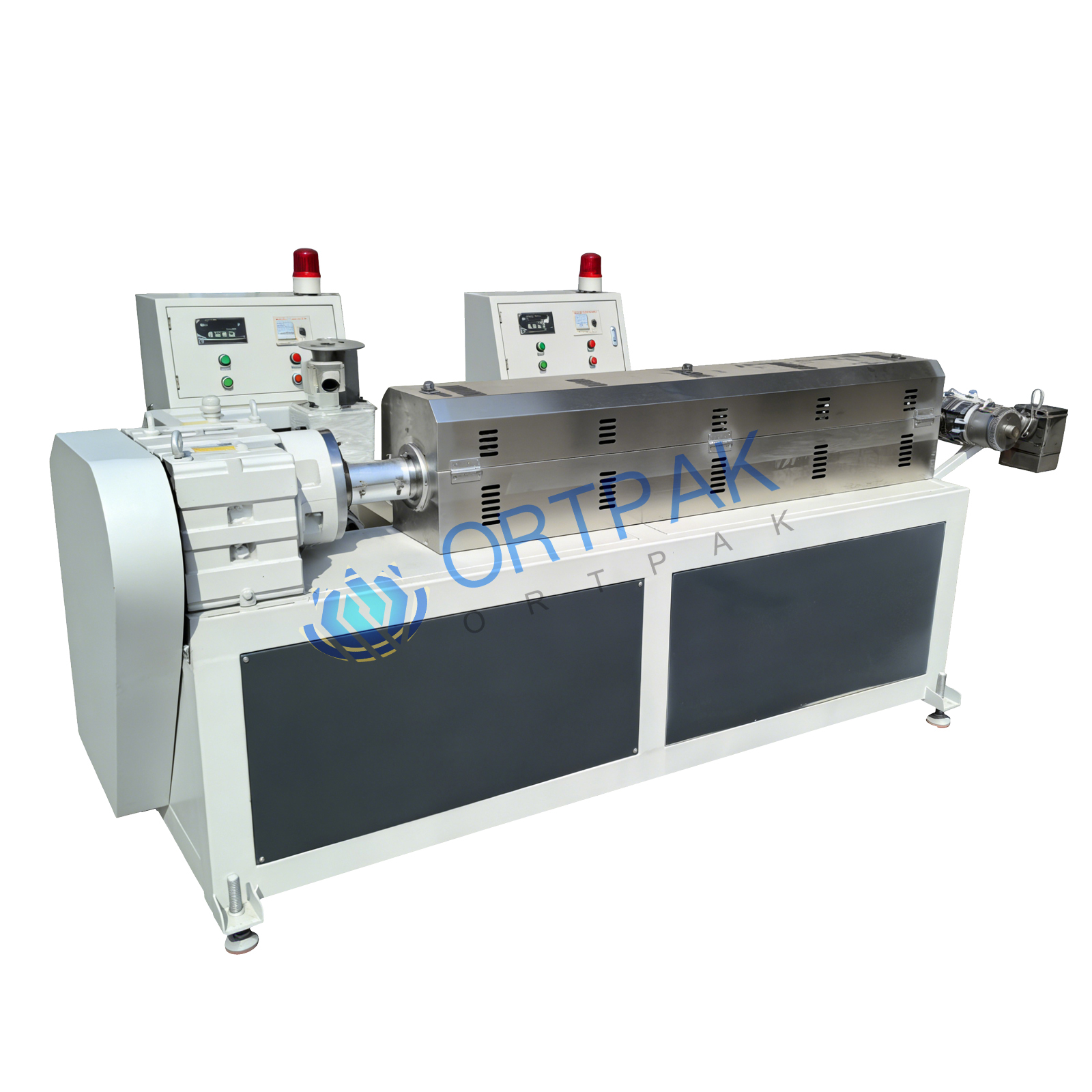

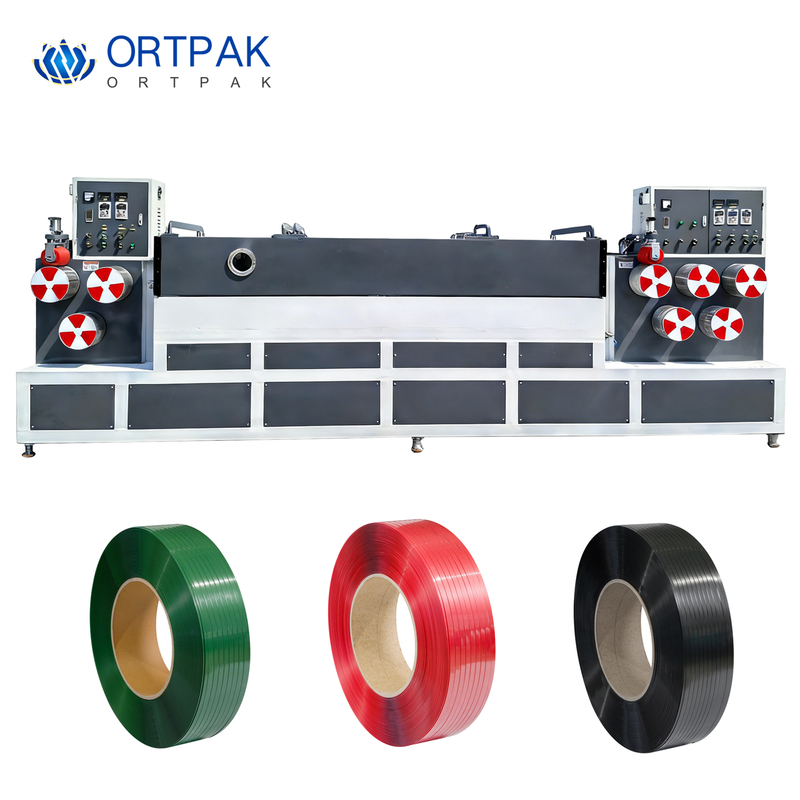

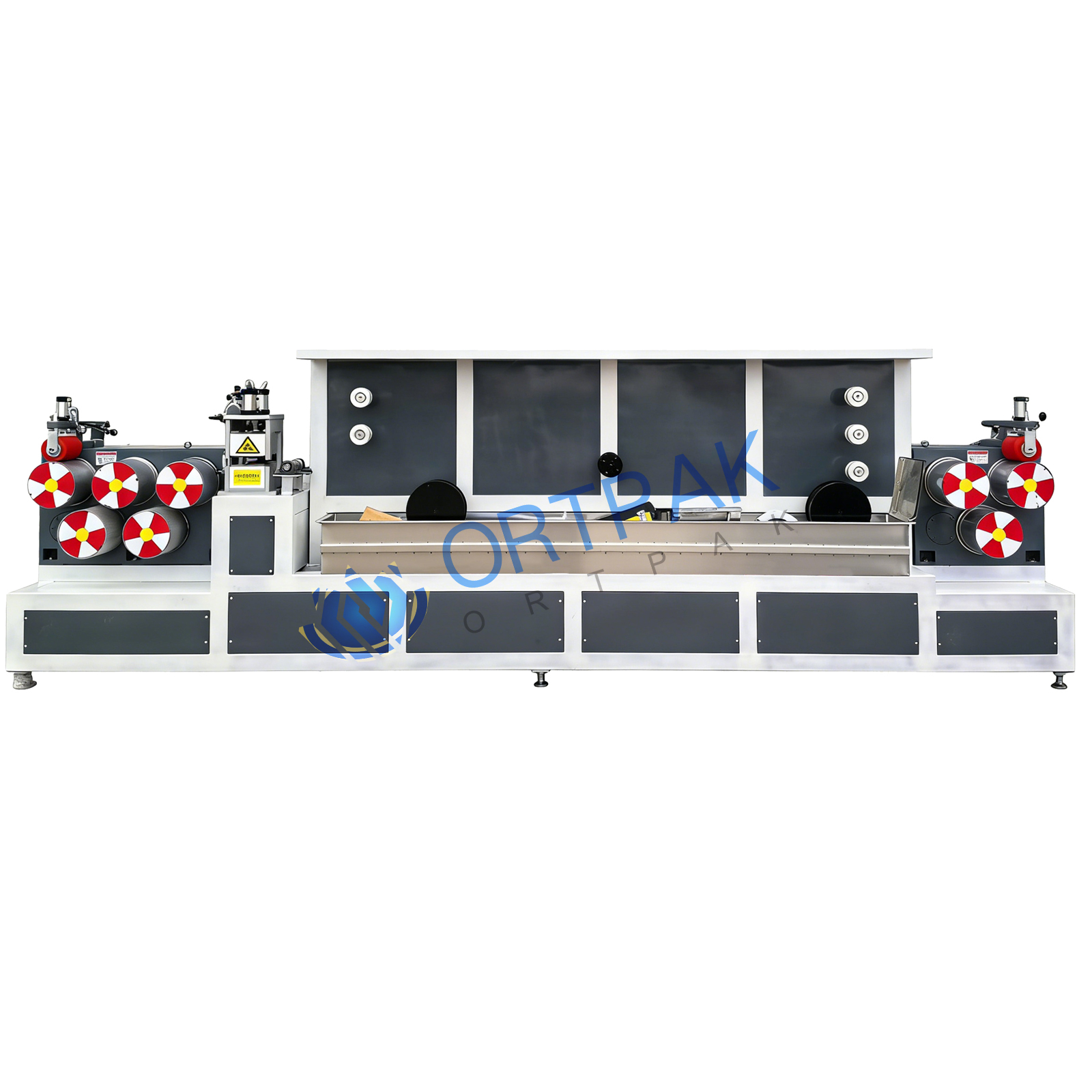

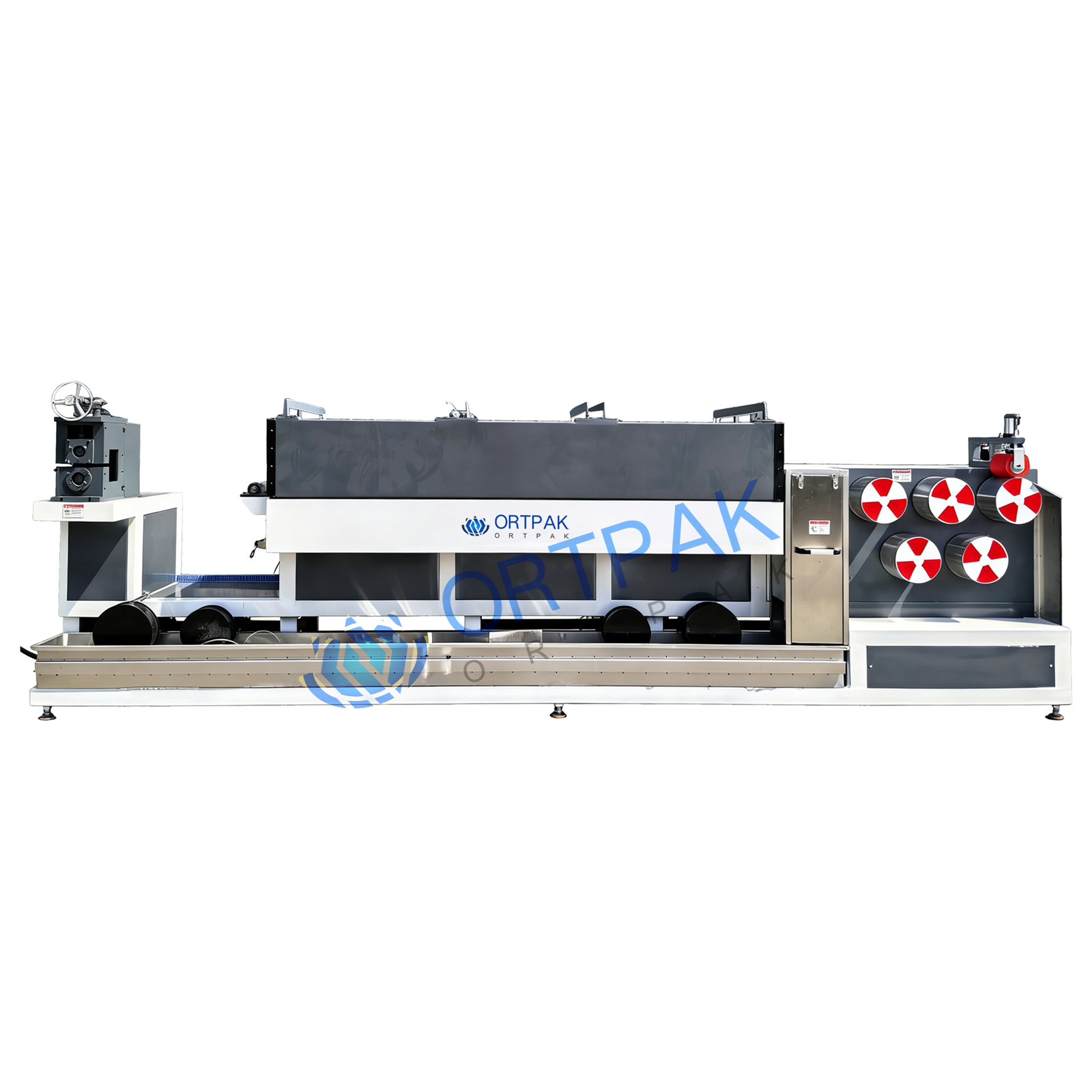

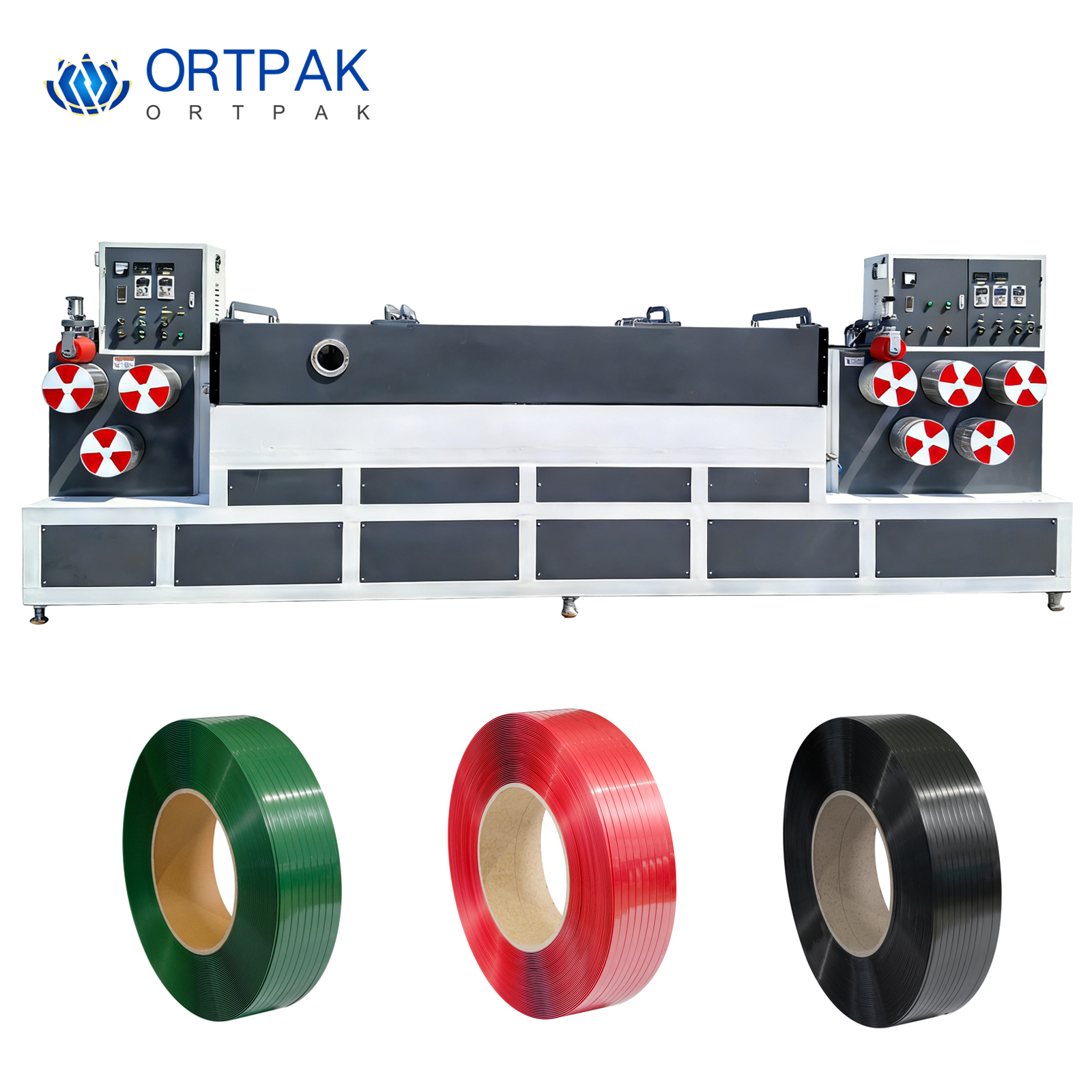

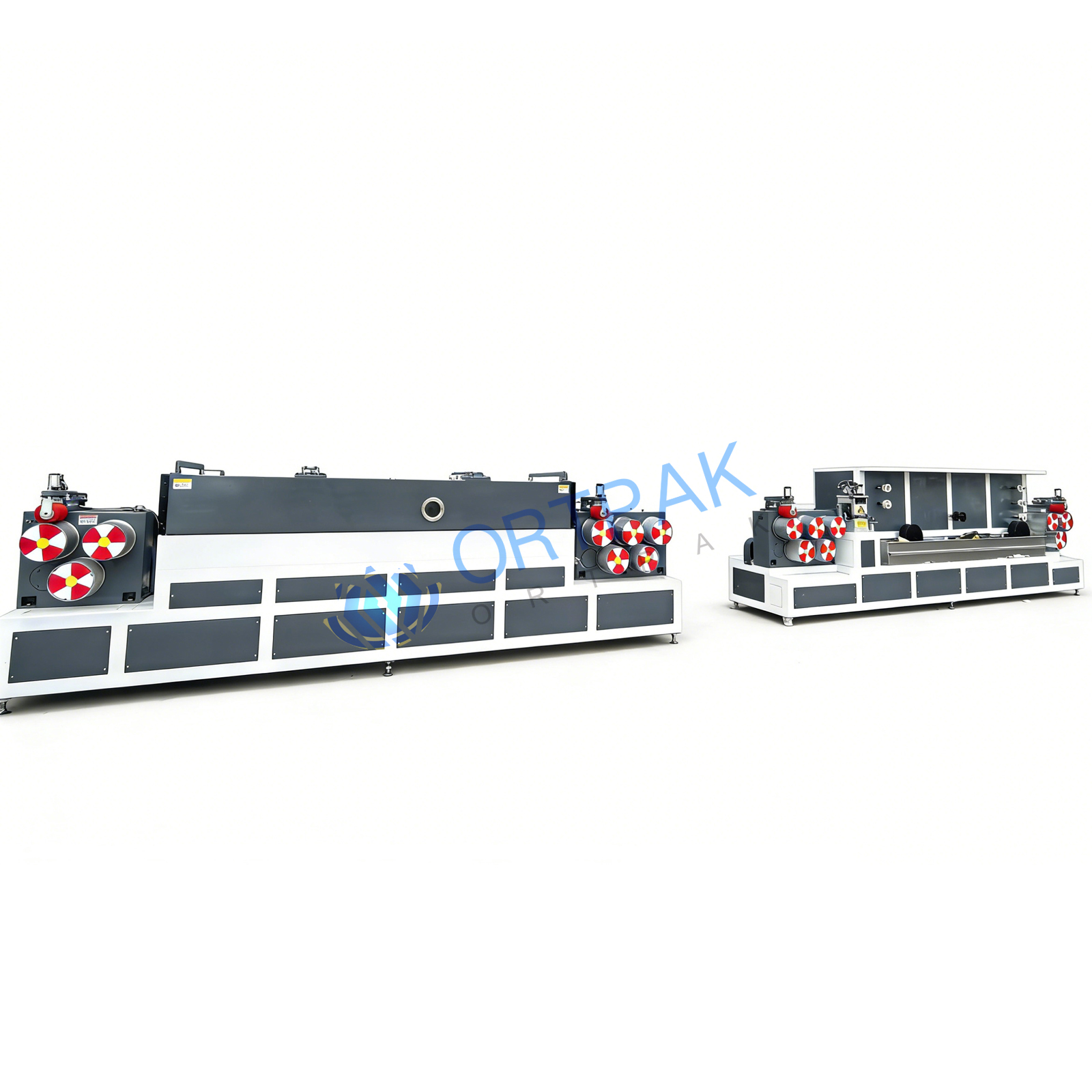

Plastic PET Packaging Band Strap Belt Production Line
Main features of the pet strap extrusion line
Utilizes 100% recycled pet bottle flakes
Produces 9-32mm strap, 1/2/3/4/6/8 lines
Close-loop control & speed sync system
High tension force as required
Low energy use, high production capacity.
User-friendly, saves manpower
Basic Info.
| Model NO. | Production Line | Trademark | ORTPAK |
| Raw Material | Pet Bottle Fragments | Product | Pet Strap |
| Thickness Range | 0.6mm-1.2mm | Width Range | 9mm-25mm |
| Total Installed Power | 150kw, (380V; 50 Hz) | Capacity | 150kg—200kg/Hour |
| Package Size | 720 * 110 * 180cm | Package Gross Weight | 1000.000kg |
Technical Specifications
(Custom configurations available upon request.)
| Machine Model | Machine Capacity | Strap lines |
| ZLYJ200-80/32 | Max. 150kg/hour | 1-2 lines |
| ZLYJ225-90/32 | Max. 250kg/hour | 1-2 lines |
| ZLYJ250-105/32 | Max. 150-250kg/hour | 1-2 lines |
Final Product-PET Strap
Size: Width 9-32mm, thickness 0.5-1.5mm customizable
Color: Red, yellow, blue, green, grey, white can be customized
Tensile strength: Various grades as per customer needs
Weight: 15-330kg/roll, logo printing available
Application: Fits various brands of auto strapping machines
